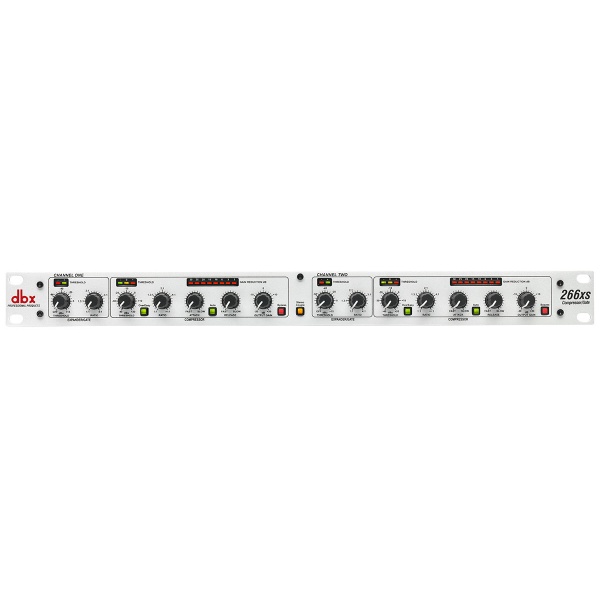

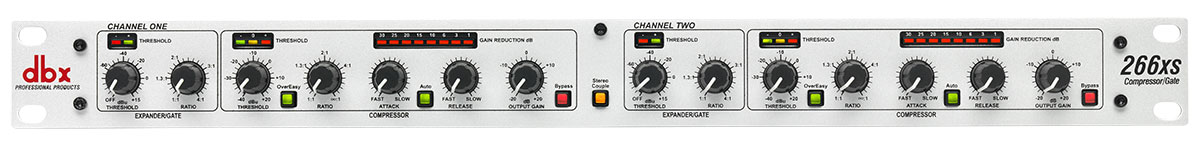

L'aggiunta di un DBX266XS Compressor / Limiter / Gate al tuo suono dal vivo o in studio ti permette avere più controllo della dinamica per creare un suono più pulito e professionale. Avere un compressore nella vostra catena audio dà la possibilità di appianare livelli disomogenei, aggiungere sustain alle chitarre e dare un suono più profondo alla tua batteria. Inoltre aggiunge una maggiore chiarezza alle voci facendole risaltare rispetto agli strumenti circostanti.
Caratteristiche Tecniche:
INPUTS
- Connector: 1/4" TRS, female XLR (pin 2 hot)
- Type: Electronically balanced/unbalanced, RF filtered
- Impedance: 40kΩ balanced, 20kΩ unbalanced
- Maximum Level: >+22dBu Balanced or Unbalanced
OUTPUTS
- Connector: 1/4" TRS, female XLR (pin 2 hot)
- Type: Impedance-balanced/unbalanced, RF filtered
- Impedance (+4dBu): 100Ω balanced, 50Ω unbalanced
- Impedance (-10dBu): 1kΩ balanced, 500Ω unbalanced
- Maximum Level: >+21dBu balanced/unbalanced into 2kΩ or greater; >+18dBm balanced/unbalanced (into 600Ω)
SIDECHAIN INSERT
- Connector: 1/4" TRS Phone, Normalled: Ring = Output (send); Tip = Input (return)
- Impedance: Tip = >10kΩ (Input), Ring = 2kΩ (Output)
- Maximum Level: Tip = >+22dBu (Input), Ring = >+20dBu (Output)
COMPRESSION
- Threshold Range: -40dBu to +20dBu
- Threshold Characteristic: Selectable OverEasy® or hard knee
- Compression Ratio: 1:1 to Infinity:1
- Attack Time: Scalable Program-Dependent AutoDynamic™
- Release Time: Scalable Program-Dependent AutoDynamic™
EXPANDER/GATE
- Threshold Range: -60dBu to +15dBu
- Expansion Ratio: 1:1 to 4:1
- Attack Time: <100µSec
- Release Time: Program-Dependent
SYSTEM
- Bandwidth: 0.35Hz - 90kHz, +0/-3dB
- Frequency Response (Flat): 20Hz - 20kHz; +0/-0.5dB,
- Noise: <-93dBu, unweighted (22kHz measurement bandwidth)
- THD + N: <0.2%; Any Amount of Compression @1kHz
- Intermodulation Distortion: <0.2% SMPTE
- Dynamic Range: >114dB, unweighted
- Interchannel Crosstalk <-95dB, 20Hz to 20kHz
- CMRR: >40dB, typically >55dB at 1kHz
- Stereo Coupling: True RMS Power Summing™
POWER
- Power Consumption: 15 Watts Maximum
- Operating Voltage: 100 VAC 50/60Hz; 120VAC 60Hz; 230 VAC 50/60 Hz
- Operating Temperature: 0°C to 45°C (32°F to 113°F)
PHYSICAL
- Dimensions: 1.75" x 5.75" x 19" (4.45 cm x 14.6 cm x 48.26 cm )
- Weight: Net weight: 4.84 lbs (2.19 kg)
- Shipping weight: 6.6 lbs (2.99 kg)
- Note*: 0dBu = 0.775Vrms
Fabbricante: DBX
