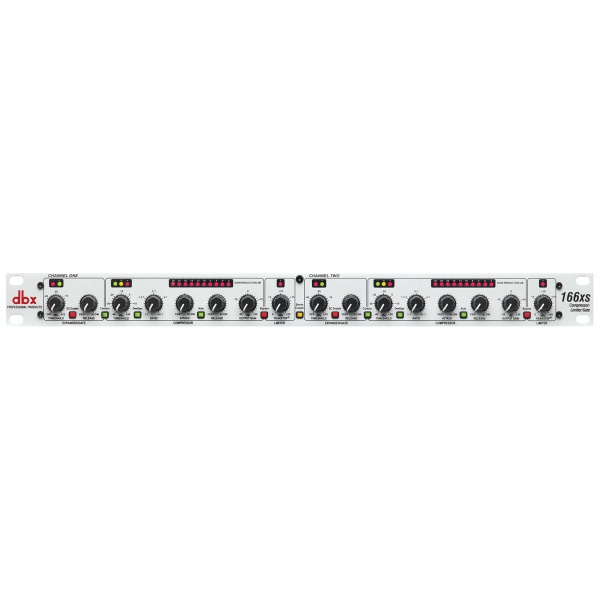

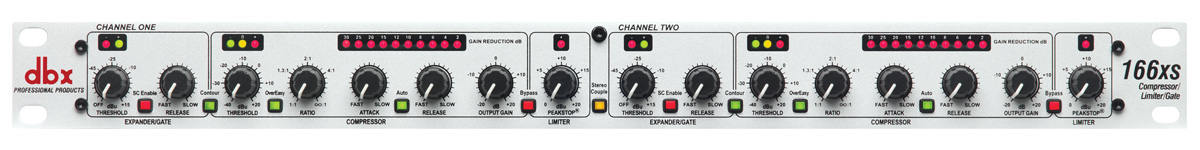

L'aggiunta di un DBX 166XS Compressore/Limiter/Gate al tuo setup audio dal vivo o in studio offre un maggiore controllo dinamico che consente di creare un suono professionale più pulito. Avere una compressione nella catena audio dà la possibilità di appianare i livelli di irregolarità, aggiungere sustain alle chitarre e rendere più corpose le tue batterie. Inoltre rende facile portare la voce al mixer - aggiungendo una maggiore chiarezza e facendola risaltare dagli strumenti circostanti. Per proteggere costosi amplificatori e speaker il limiter PeakStop fornisce un limite massimo assoluto alle escursioni di picco, o ai transitori di grandi dimensioni, che potrebbero danneggiare le apparecchiature.
Caratteristiche Tecniche:
INPUTS:
- INPUTS (1/4” TRS Phone XLR): Floating Balanced; XLR: Pin 2 and TIP HI
- Impedance: >50kΩ balanced, >25kΩ unbalanced
- Maximum Level: +24dBu, Balanced or Unbalanced
- CMRR >40dB at 1kHz, typically >55Db
INSERT:
- SIDECHAIN INSERT (1/4” TRS Phone): Normalled: Ring = Output (send); Tip = Input (return)
- Impedance: Tip = >10kΩ (Input)
- Ring = 2kΩ (Output)
- Maximum Level: +24dBu
OUTPUTS:
- OUTPUTS (1/4” TRS Phone XLR): Floating Balanced; XLR: Pin 2 and TIP HI
- Impedance: 120kΩ balanced, >60Ω unbalanced
- Maximum Level: +21dBu, > +20dBm (into 600Ω), balanced or unbalanced
- FREQUENCY RESPONSE: 20Hz - 20kHz, +0/-0.5dB, Typical 3dB points are 0.35Hz and 110kHz, unity gain
SYSTEM PERFORMANCE:
- Noise: <-90dBu, 22Hz to 22kHz, no weighting, unity gain
- THD+N: Typically <0.04%; Any Amount of Compression Up to
- 40dB@1kHz
- SMPTE IMD: Typically <0.08% @ +10dBu (15dB Gain reduction)
COMPRESSOR:
- Threshold Range: -40dBu to +20dBu
- Threshold Characteristic: Selectable OverEasy® or Hard Knee
- Compression Ratio: Variable; 1:1 to Infinity:1; 60dB Maximum Compression
- Attack Time: Variable program-dependent; 3ms to 340ms for 15dB gain reduction
- Release Rate: Variable program-dependent; 200dB/Sec to 3dB/Sec
EXPANDER GATE:
- Threshold Range: OFF to +15dBu
- Expansion Ratio: 10:1
- Maximum Depth: >60dB
- Attack Time: <500μs (from Maximum Depth)
- Release Rate: Adjustable, 30ms to 3sec (to 30dB attenuation)
PEAKSTOP LIMITER:
- Threshold Range: 0dBu to +20dBu
- Gain Adjustment Range: Variable; -20dB to +20dB
- Interchannel Crosstalk: <-80dB, 20Hz to 20kHz
- Dynamic Range: >115dB
STEREO COUPLING: True RMS Power Summing™
POWER SUPPLY:
- Operating Voltage: 100 VAC 50/60Hz; 120VAC 60Hz; 230 VAC 50/60 Hz
- Power Consumption: 15 Watts Maximum
- Operating Temperature: 32°F to 113°F (0°C to 45°C)
